Lub Compact, Tsawg -Profile Powerhouse

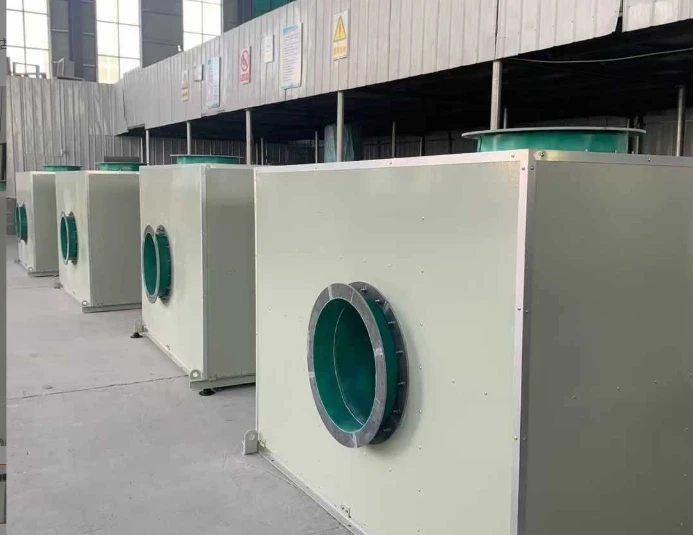

Ua raws li Block ru tsev ventilators - ib qho kev sib xyaw ua ke, modular cua lub voos xwmfab tsim los rau niaj hnub architecture uas tsis tshua muaj profile thiab siab airflow yog qhov tseem ceeb. Nws lub compact, duab plaub "block" zoo nyob rau hauv ib tug npaum axial los yog sib tov -flow impeller, qis- suab nrov lub cev muaj zog, thiab kev tiv thaiv nta nyob rau hauv ib tug sleek casing. Qhov zoo tshaj plaws rau cov khw loj loj, cov chaw thauj khoom, thiab cov tsev lag luam uas tsis tshua muaj - lub ru tsev, qhov thaiv lub ru tsev lub tshuab ua pa no muab cov cua txav tseem ceeb nrog qhov cuam tshuam me me thiab kev teeb tsa ncaj nraim.
Optimized rau Efficiency thiab ntsiag to ua haujlwm
Block ru tsev ventilators yog tsim los rau kev ua tau zoo, txav 8,000-15,000 m³ / h ntawm huab cua tiv thaiv zoo li qub siab mus txog 150 Pa. Nrog rau tag nrho cov kev ua tau zoo ntawm 55-65% thiab lub zog ua haujlwm ntawm 1.8-4.0 kW, nws sib npaug kev ua haujlwm nrog kev lag luam. Nws cov tub ntxhais feem ntau yog ncaj qha- tsav, sab nraud-rotor lub cev muaj zog (2.2–5.5 kW, 380V / 50Hz, IP54 lossis siab dua, F-chav kawm, IE3) tsim rau siv sab nraum zoov. Ua haujlwm ntawm qhov ntsiag to 920-1,450 r / min, nws tsuas yog 65-72 dB (A) ntawm 1 meter. Precision G6.3 ntsuas kom ua haujlwm zoo, ua kom muaj kev vibration qis dua 2.8 mm / s.
Sealed, ruaj ntseg, thiab npaj rau txhua lub ru tsev
Engineered for worry-free outdoor installation, the block roof ventilator features a fully sealed, corrosion-protected casing. Nws muaj qib 10 cua tiv thaiv thiab IPX4 los nag ntsuas, ua tiav nrog kev sib xyaw ua ke los tiv thaiv - los nag / tiv thaiv - rov qab louvers thiab cov txheej txheem dej tsis sib haum. Cov qauv kev nyab xeeb muaj xws li kev tiv thaiv hluav taws xob hauv av, thiab nws cov kev tsim kho muaj zog yog tsim los ua kom tau raws li 8-degree seismic cov cai. Raws li ua tiav, ua ntej - pob khoom sib dhos, lub tshuab ua pa no muaj "plug-thiab-ua si" kev daws teeb meem uas ua tau raws li kev lag luam xav tau rau kev zoo nkauj, kev ntseeg siab, thiab kev nplij siab.
Key Performance Parameters
|
Parameter |
Tus nqi / Ntau |
|
Cua ntws (m³ / h) |
8,000 – 15,000 |
|
Static Pressure (Pa) |
0 – 150 |
|
Tag nrho Efficiency (%) |
55 – 65 |
|
Lub cev muaj zog (kW) |
2.2 – 5.5 |
|
Lub zog ua haujlwm (kW) |
1.8 – 4.0 |
|
Ceev (r/min) |
~920 – 1450 |
|
Noise Level @1m (dB(A)) |
65 – 72 |
|
Kev tiv thaiv ntsuas |
IP54 (los yog siab dua) |
|
Rwb thaiv tsev Class |
F |
|
Zog Efficiency Class |
IE 3 |
|
Cua Resistance |
Qib 10 |
|
Kev tiv thaiv nag |
IPX4 |
|
Ntsuas Qib |
G6.3 |
|
Kev vibration ceev (mm / s) |
Tsawg dua lossis sib npaug li 2.8 |
